50TPD Professional Vegetable Oil Extraction Equipment

FOB Reference Price:Get Latest Price
$4,200.00 - $56,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT-SOEM
Power(W):
According to specification
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
99%
Usage:
Peanut , palm , soybean , Cottonseed, Coconut, Sunflower, Sesame oil
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China
Brand Name:
Huatain
Voltage:
380V/220V
Dimension(L*W*H):
According to specification
Weight:
According to specification
Certification:
CE ,ISO ,BV, SGS
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Material:
Carbon steelQ235 and stainless steel SS304/316
Enterprise strength:
Strong R&D team
After -sale service:
offering installation and dubugging ,1 year quality warranty period
warranty:
12 months
Raw material:
Oil Seeds
Name:
Vegetable Oil Extraction Plant
Application:
Vegetable Oil Extracting
Capacity:
20-2000TPD
Function:
Edible Oil Extraction
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nube packing for Vegetable Oil Extraction Machine
Port
Qingdao
Company Information

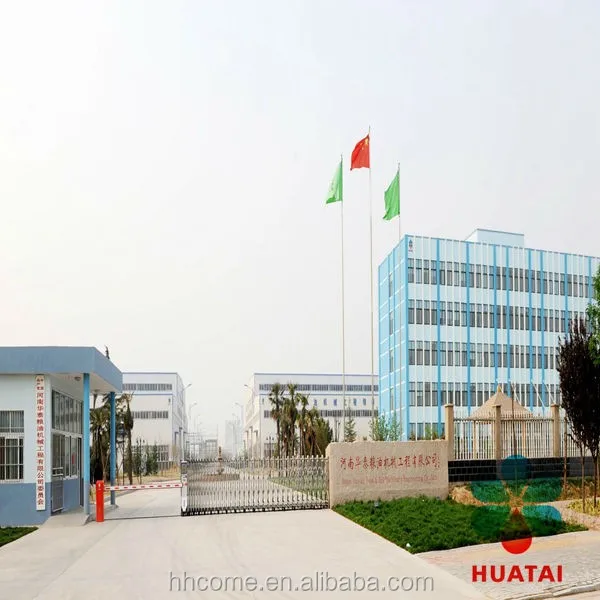

Henan Huatai Cereals and Oils Machinery Co.,Ltd, formerly Henan province Huaxian Grain Machine Factory.located in Huaxian Industry Zone of  Henan province,covering an area of 100,000.00m², owing 580 staffs ,has 8 processing workshops ,12 installation teams,202 sets of machining equipment,is a large -scale oil machinery manufacturing enterprise integrating R&D ,design ,manufacture and installation.
We have the most complete production certifications of oil machines,such as "Design License of pressure vessel ","Manufacture License of pressure vessel ""Design License of pressure pipeline ","Installation License of pressure pipeline "and "Manufacture License of Organic Heat -Loading Furnace "issued by General Admination of Quality Supervision,Inspection and Quarantine,also have self - supported  import & export right and have passed ISO9001:2008 Quality Management System  Certification.won Henan provincial famous brands "Huatai"and "Hangpeng"
Over the years ,we obtained 27 national patents (include 7 invention patents ) 6 internation metals ,2 national awards and 2 provincial prizes by top excellent innovation and credibility ,patented cottonseed protein dephenolization equipment, won the third Award of National Scie-Tech Progess in 2007,and won Silver Medal on the sixth International Invention Exhibition.Patented rice bran expanding &extraction equipment won the second award of National Scie -Tech Progress as well as Gold  metal at the 18th National Inventions Exhibition.Patented mini cooking oil refining machine unit won golden on the 8th patented technology exhibition.
Our products sold well in over 30 provinves ,cities and districts ,and exported to Bolivia,Sudan, Rwanda,Kazakhstan,Uzbekistan,Tajikistan,Russia,,Malaysia,Indonesia,Bangladesh,Myanmar ,Thailand ,Egypt,Estonia and other countries, now we have developed into the large oil machinery manufacturing base in China .
We have strong R&D team ,production team ans installation team, offer perfect after-sale service ,after delivering goods ,we will dispatch technicians to instruct installation ,commissioning and train your workers to operate machines by yourselves.







Product Description

 Specifications:



oil extraction machine:

 1.High oil yield

2. Improve the quality of crude oil and cake or meal



1. Solvent Extraction section



 Solvent extraction is a kind of advanced oil extracton,adoping organic solvent  extraction method  according to different solubility of  each component . Now it has been widely applied to oil extraction plants .Oil is extracted from pressed cake by contact (soaking or spraying )between solvent and cake ,them mixed oil of oil and solvent will be got .Wet meals is separated out through liquid cyclone and is conveyed to desolventizer with scraper conveyor.



The adventages are as following :

1. high oil yield k,low residual oil rate of meal.

2. low laber intensity

3. good work environment

4. good meal quality .



2. Desolventizing -toasting section



The meal from extractor contains 25-35% solvent, for recovering solvent and getting better meal, solvent can be toasted by heating ,High material  layer toaster is usually applied to remove solvent from meal as well as dry extracted meal ;DTDCdesolventizer should be used for extracted meal.



3. Evaporation section



Solvent of miscella is vaporized by heating to improve oil concentration of mixed oil ,i,e volatile solvent is separated from nonvolatile.Negative pressure evaporation is better to make sure good extract oil quality. Long-pipe evaporator(also named raising  film evaporator) is widely used  for this section.



4. Steam- stripping section



After twice evaporation and separation ,adopt steam distillation to reduce boiling point  of mixed oil ,so as to remove trace solvent off at lower temperature. Steam -stripping tower is used in this section.



5. Solvent recovery section

Considering the production safety and cost ,evaporate ,stripped and toasted solvent should be recovered through condensation Tube condensers are widely used in this section.





 Craft flow sheet:





Solvent warehouse →solvent holding tank ← water distribution← condensing ←condensing← condensing

          (outdoor)                     ↓                                                                       ↑

                           organic solvent (n-hexane)                     evaporation & steam-stripping)

                                                                                                           ↑

soybean  flakes  → extraction     →      →     →     →    →       wet meal toasting   →   →   finished meal

                                    ↓

                              miscella            →       evaporation    →      steam-stripping    →    →   crude oil







Requipments for extraction cake ,steam ,water ,electricity



1.moisture of extraction material: 5-8%,

2. temperature of extraction material:50-55°c

3. oil content of extraction material:14-18%

4. thickness of extraction cake :≤13mm

5. powder porosity of extraction material :≤15%(30meshes);

6. steam :≤0.6Mpa

7. solvent: national standard No.6 solvent oil;

8. electric power :50 Hz 3×380V±10%;

     electric lighting : 50Hz220V±10%

9. temperature of supplement water: ≤25°cHardness: ≤10;

10. volume of supplement water : 1-2m/t Raw material:

11. temperature of recycle water :≤32°c



Main equipments of oil extraction workshop



Rotocel extractor



Capacity :20-2000T/d



Adventage : mixed oil with little meal,structure simple ,work placidly ,repair easily,transport









Our Services





1. According to customers' requirement to design and make the machine

2. Professional technicians go overseas to instruct installation ,commissioning and teach customers'workers how to operate machine and repair it .
