Patented technology rice bran extraction machine,Rice bran oil machine

FOB Reference Price:Get Latest Price
US $100-30,009 / Sets | 1 Set/Sets crude Rice bran oil machine (Min. Order)
Report Suspicious Activity
Quick Details
rice bran oil
Cold & Hot Pressing Machine
Automatic Grade:
Production Capacity:
Place of Origin:
Henan, China (Mainland)
Brand Name:
Model Number:
according to the specification
After-sales Service Provided:
Engineers available to service machinery overseas
Oil quality:
Grade 1
Carbon steel and SS304/316
Expanding,extraction and refining
Technology supports:
7 patents for rice bran oil machine
Oil Residues:
1% max
Worker Quantity:
3-5 persons per shift
Easy to operation
Rice bran oil machine
15 Set/Sets per Month crude Rice bran oil machine
Packaging & Delivery
Packaging Details
1,complete crude Rice bran oil machine depends on requests;
2,Nude Packing,Wooden Case;
3,Wood packing and 40HQ normally;
transported in Qingdao
Lead Time :
Shipped in 35 days after payment
Product Description

Rice Bran Oil Machinery Introduction

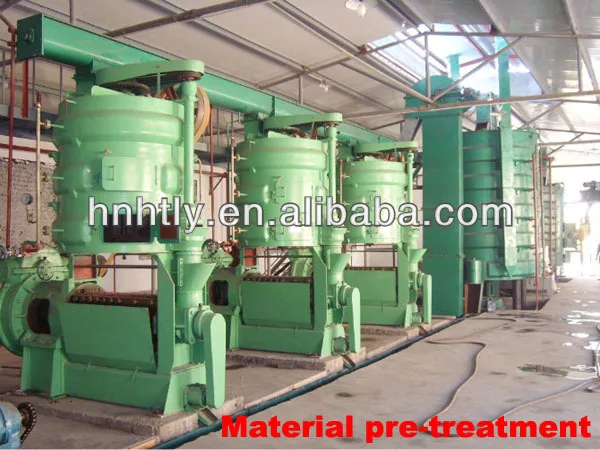

1.Separating bran from fine broken rice section

The section is mainly used to remove broken rice and crude bran shell as well as other impurities, and it can reduce equipment failure,ensure normal operation,lower residual oil yield and solvent consumption.The screening method and wind separation method are usually used in the section.

2.Rice bran softening and conditioning section
Before entering the expander,rice bran is heated in advance, temperature of rice bran before expansion is increased,and expansion quality of rice bran is improved.Softening pot is mainly used to soften rice bran,improve its plasticity so as to improve extraction efficiency.

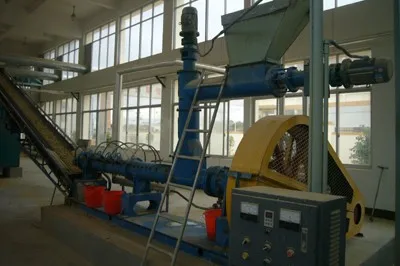

3.Rice bran expanding section
The section is a process before oil extraction, expanded rice bran can improve extraction efficiency, lower solvent and steam consumption,and increase oil yield and quality of crude oil.Main machine is rice bran expander.

4.Rice bran drying section
Using plate dryer to adjust the moisture and temperature to suit for extraction.

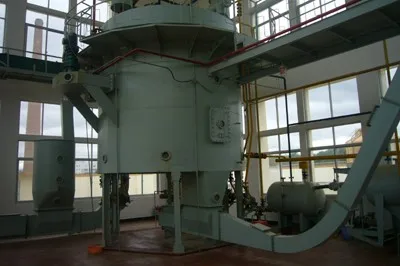

5.Extraction section
Oil extraction is an advanced oil production craft, now widely applied to oil plants,and it’s an organic solvent extraction method,oil is extracted from rice bran by contact(soaking or spraying) of solvent and rice bran.

The advantages are as following:

1.high oil yield, low residual oil rate of meal;
2.low labor intensity;
3.good working environment;
4.good meal quality.
6.Desolventizing-toasting section
The meal from extractor contains 25-35% solvent, for recovering solvent and getting better meal, solvent can be toasted by heating.High material layer toaster is usually applied to remove solvent from meal as well as dry extracted meal; DTDC desolventizer should be used for extracted rice bran meal.
7.Evaporation section
Solvent of mixed oil is vaporized by heating to improve oil concentration of mixed oil, i.e. volatile solvent is separated from nonvolatile matters. Long-pipe evaporator(also named raising film evaporator) is widely used for this section.

8.Steam-stripping section
Use steam distillation to reduce boiling point of mixed oil,so as to remove trace solvent off at lower temperature.

9.Crude oil degumming section
Add hot water and food grade phosphoric acid to mix with crude rice bran oil to finish degumming, mainly removing phospholipids,protein, grume and trace metal ions.Separate oil foots from oil with centrifuge, then dehydrate and dry oil.

10.Alkali refining deacidification section
Add caustic soda to neutralize free fatty acid to form sodium fatty acid,which will be separated from oil.

11.Decolorization section
Mix active bleaching clay with oil under vacuum condition for adsorption bleaching,and use leaf filter to remove waste bleaching clay.

12.Deodorization section
Under high temperature and high vacuum condition,utilize water vapour distillation to remove odor of oil.

13.Dewaxing & defatting section
Utilize winterization crystallization method to remove wax and fat,then through filtration separate wax and fat from oil.

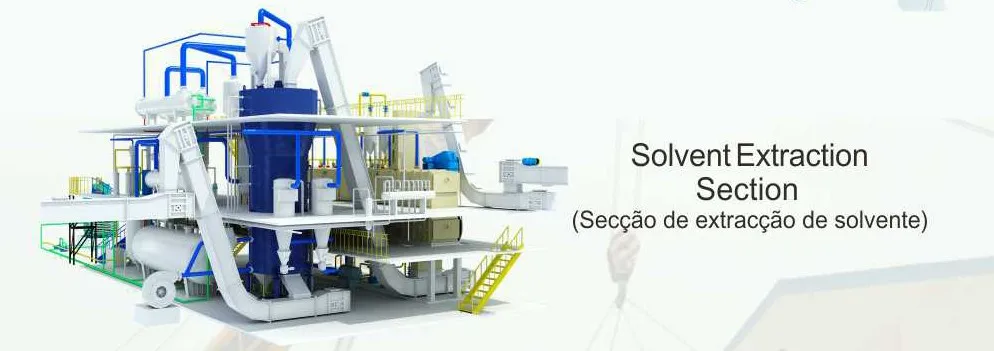

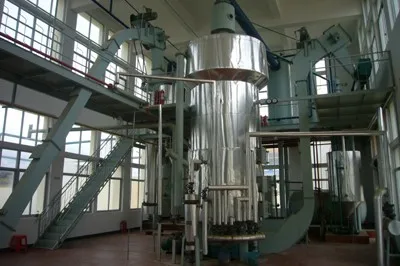

Solvent extraction
Company Profile

1.Our factory is located in Huaxian County, the birth place of oil machinery in China, our factory covers an area of 100000m2, with 8 standard processing workshops, 202 sets of machining equipment, 580 staff, 12 intallation teams.
2.Our trademark "Hangpeng" win TOP 10 oil machine brand, because of excellent product quality and perfect after-sale service.
3.We have successfully obtained 27 national patents (including 8 invention patents), 6 international awards, 4 national awards and 2 provincial awards.
4.We have the most complete production certificates of oil machines, such as "Design license of pressure vessel","Manufacture license of pressure vessel","Design license of pressure pipeline","Installation,reconstruction and maintenance license of pressure pipeline", "Manufacture license of organic heat carrier furnace" and installation certification of mechanical and electrical equipment".
5. We are outstanding member enterprise of CCOA (Chinese Cereals and Oils Association), so we produce machines according to standard, and refined oil reaches the best edible oil standard.
6.We have strong R & D team, production team and installation team, offer perfect after-sale service, after delivering goods, we will dispatch technicians to instruct installation, commissioning and train your workers to operate machines by yourselves.
7.We are provincial enterprise abiding by contracts and keeping promises, we have produced oil machines for 65 years, with rich experience and own brand, so we are responsible for all of our projects, especially for oversea projects.

Customers visit
Our Advantages

30 years experience

Quality guarantee

24-hour service

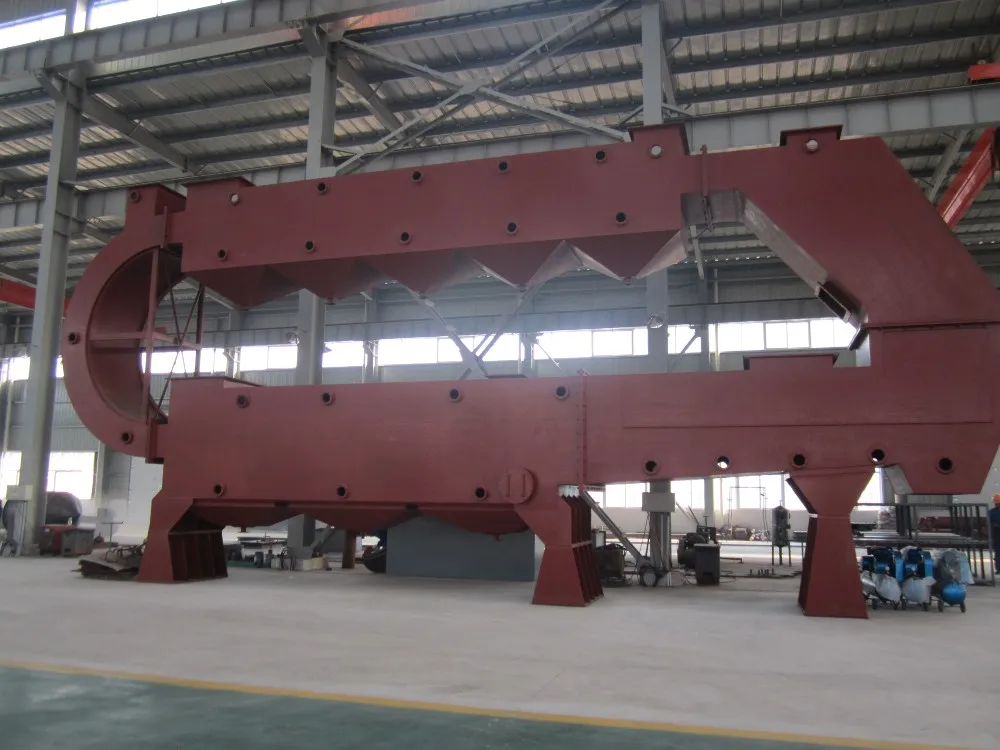

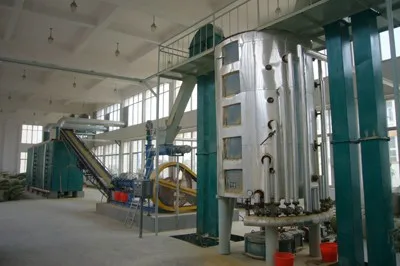

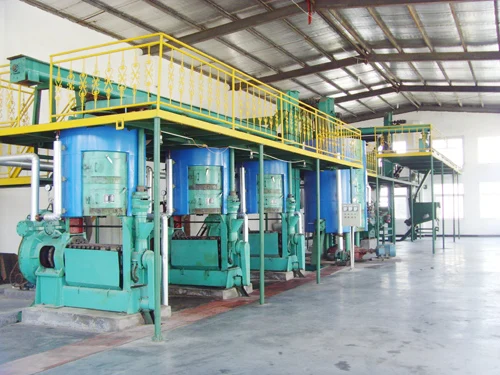

Main equipments

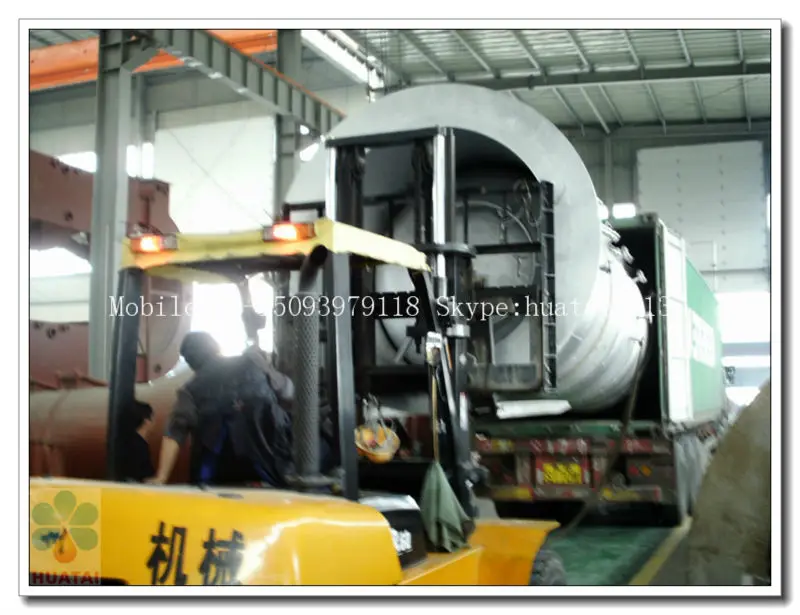

Packing & Delivery
